EPHUM-I-MAX Wifi Humidistat and Temperature Monitor for EPXXX RESTO and EPXXX MAX Models

Filter

Low voltage humidistat for EPXXX RESTO & MAX units. Allows full remote control of the appliance via wifi link.  Uses standard wifi so no data charge provided than lan or dongle internet connection is available to connect to.  Works on 2.4GHz only together with Apple or Android smartphone with free EPHUM-I-MAX App.

CLICK BELOW

App Connection App Guide

EPHUM-I-MAX Wifi Humidistat and Temperature Monitor for EPXXX RESTO and EPXXX MAX Models

Installed in Seconds

Easy to operate. Please note there is a 5% tolerance factor built into every dehumidifier. The higher the HIGHER THE HUMIDITY % SETTING THE LESS THE DEHUMIDIFIER WILL DRY and vice-verse. At near 100% the humidistat will effectively not turn the humidistat on. At a very low setting the humidistat will effectively turn the dehumidifier on continuously.

Wall mounted or clips can be slotted in to be able to connect to the front grill or on handle bars where fitted.

The humidity percentage relates to the relative humidity level of the air sometimes referred to a RH%.

Ideally place in the inlet air flow either on grill or in air inlet duct.   Cable for the EPHUM-I-MAX  can be extended up to 20’/7m.

Parts Associated

When purchased as seperate item the EPHUM-I-MAX comes with power adaptor and USB plug for powering the EPHUM-I-MAX externally to the unit.  This means that temperature and humidity data can be retrieved from the sensor without the need for connection to any Ecor Pro appliance.  (No control is given to any appliance unless it is connected directly.  Only enviromental data)

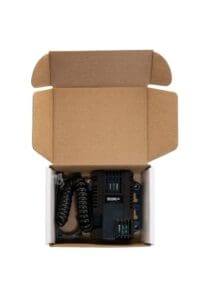

Complete Kit

When supplied as spare part

Additional Parts

Not supplied with appliance

Many sensors can be added to an enviroment simply to monitor conditions (up to 999).  The independent sensors can be used to trigger other events or monitors in rooms or App scenes where a monitor can triger an even in another appliance having appliances working smartly together,

NOTE:

Total run time hours data is held inside the unit’s memory.  All other data is stored through the App to the mobile device it is paired with.  No large amount of data is buffered inside the unit.  Data received while there is a wifi connection.

Humidistat Types Explained

EPHUM-I-DRY – LOW VOLTAGE Used with EPXXX RESTO & EPXXX MAX models, Low voltage humidistat with 1.0m / 3″ cable. Comes fitted with RJ11 plug for inserting directly into the unit unique to Ecor Pro. Connects in 4 seconds after unit recognises humidistat device.

EPHUM110E – HIGH VOLTAGE Used with EPD200 / DH3500, EPD150 / DH2500 / DH2511 / DH3511, High voltage humidistat with 1.5m / 4″ cable. Comes fitted with mil standard plug that screws directly into the dehumidifiers in seconds.

Simple humidity probe can be added to ducting and in remote areas also 1.5m / 4′ long.  Plugs into EPHUM110E via a 2.5mm jack plug all provided.

EPHUM24DF – LOW VOLTAGE Used with EPD50 / DH1200, EPD30 / DH800, Low voltage humidistat with 2m / 6″ cable. Also comes fitted with a 2.5mm two pole jack plug fitted directly into the dehumidifier.

Weight 0.2 kg
Dimensions 11.5 × 7.5 × 4.5 cm
(L x W x H)-(weight)

4.5" x 3.0" x 1.8" – 0.4 lbs
Technology

Humidistat
Barcode

EAN 5060224950463
Colour

White
Material

Plastic matt finish
Colour / Material

White/ Plastic
Duct Sizes

Not Applicable
Swimming Pool Ready

No
Humidistat Inside / Humidistat Option

Not Applicable
Carrying Handle / Water Container / Power Cord Length

Not Applicable / Not Applicable
Fan Speeds / Sound

Not Applicable / Not Applicable
Operting Temperature

Minus 20?C to plus 40?C
Power Out Restart / Works From DC-AC Coverter

Not Applicable / Yes
Airflow

Not Applicable
