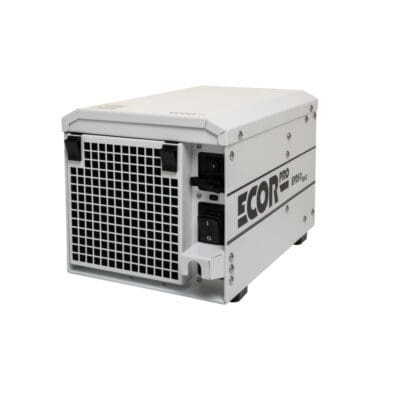

EPD50-MAX DryFan Desiccant Pro Dehumidifier for Home and Semi-Industrial Drying Applications

Desiccant dehumidifier designed for home drying 26 pint / 13 litre maximum water extraction.  With manual humidistat, exhaust hose and 125mm/5″ ducting flanges for adding to air systems.  Ideal for keeping homes dry, outbuilding protection as well as boat care.  Unlike normal dehumidifiers it is designed to run 24/7 unattended. Great for applications where dryng in needed without producing a condensate water  i.e. in freezing temperatures or bacteria may be a concern.  Works where refrigerant units fail above 35°C/95°F.  Can be ducted out of sight of home owner not to take floor space and quiet.

Why EPD50-MAx Over DH1200/EPD50

  • Improved extraction 13 litres / 26 pts per day maximum
  • 1m / 3′ exhaust duct included
  • External high temperature digital humidistat included
  • WiFi controller ready
  • Serial interface ready
  • Added fused protection
  • Easy select continuous fan mode
  • Greater product efficiency
  • Phased shut down for product longevity
dehumidifier download user manual dehumidifiers by Ecor Pro

Quick Manual

dehumidifier download user manual dehumidifiers by Ecor Pro

Manual

Condensate-Free Operation: Unlike traditional refrigerant dehumidifiers, this desiccant dehumidifier doesn’t produce condensate water, which can be beneficial in certain applications where water removal isn’t desired such as in freezing conditions..

Moisture Venting: Moisture is vented away from the machine, eliminating the need for collecting or disposing of condensate water.

DRYFAN® means it can operate in any orientation, even upside down

Voltage Options: Available in both 110V/60Hz North American and 220V/50Hz Rest of World (RoW) versions, with interchangeable plugs using the patented Ecor Pro plug system.

Auto Power Reset: The dehumidifier features an auto power reset function. In case of power interruption, it can reset itself to the previous settings. Alternatively, with WiFi control enabled, the user receives a notification on their phone when power is interrupted.

Continuous Fan Option: Allow the circulation of air all the time.  Will however go into drying when needed set by the humidistat EPHUM-I-DRY provided.

Humidistat Included: The dehumidifier has a high temperature humidistat included.  Works up to 65°C / 150°F without fear of damage from the heat.  The EPHUM-I-DRY humidistat has bi-colour indication of status green and blue when in operation or stand by with a dimmable backlight to the Ecor Pro logo.

Installation Options: The dehumidifier is designed to be versatile in its installation. It has four plastic feet that can be swivelled out to provide anchor points for wall or ceiling mounting, even upside down.

IP24 Rating: The dehumidifier is rated IP24, indicating its resistance to splashes of water from various directions.

Compact Design: The dehumidifier is compact and stackable, with a carrying handle for easy portability. Its construction uses durable, all-metal materials, including a stainless marine-grade cover for longevity. See drawing here

Temperature Range: The dehumidifier operates effectively within a temperature range of -4°F/-20°C up to 104°F/40°C, making it suitable for continuous drying applications across a wide spectrum of temperatures.

WiFi Control and Monitoring Ready: Add a wifi EPHUM-I-MAX monitor and controller (not supplied)

Auto Rest: In the even of a power outage the unit will reset when no humidity controller is fitted.  The EPHUM-I-MAX will signal if there has been a power outage via a notification on your cell phone when connection made.

Serial Port: The RJ11 connection detects if a humidistat is present or not.  This also acts as a serial connection for cloud software interface (not supplied)

Fan Capacity: The dehumidifier has a continuous fan option with a clean dry air volume capacity of a single speed fan 105 CFM / 180m3/h, aiding in efficient air circulation. 52dB

Filter: The unit comes with a reticulated 10 PPI easy-to-clean dust filter to maintain air quality and prevent the buildup of debris.  Filters should be cleaned every 90 days.   Replacement pack of three filters EPFILPACK4.  Other filters can be added such as the EPCARFIL30 filter that filters odors also. Both not included.

Exhaust Duct: For North America 38mm/1.5″ and for other markets 40mm or standard push-fit waste water pipe fitting.

Power Cord: Very fast replacement of power cord for use in different markets, connection to generators or replacement if damaged with Ecor Pro patented design.  15’/5m cord lengths.

OPTIONAL DUCTING (Not Included)

Additional Accessories: Addional flange sets can be added to the input and output air flows on the unit.  These flange sets give the ability for 125mm/5″ or 90mm/3″ tubular ducting to be added to the dehumidifier to duct in wet air and dut out dry air.   EPDF125 125mm/3.5″ ducting flange or EPDF90 90mm/3″

USING DUCTING VIDEO

13 litre / 26 Pint Desiccant Semi-Pro Dehumidifier
INCLUDED

EPD50-MAX with stadard filter holder
EPDF125 in/out flange adaptors for 125mm/5″ Ducts
EPHUM-I-DRY humidistat with 2m/6″ of staight white cable
EPDUCT45x1 40mm/1.5″ flexible 1m/3′ of moisture exhaust duct
Short User Manual – QR Code for full user manual

Included humidistat with 2m/6″ cable  EPHUM-I-DRY

Included ducting flanges EPDF125 (125mm/5″)

Included flexible domestic exhaust ducting EPFLEXDUCT45x1 (40mm/3.5″ x 1m/3″)

UPGRADE TO REMOTE MONITORING WITH AN EPHUM-I-MAX REMOTE CONTROL AND MONITOR

EPHUM-I-MAX ALLOWS COMPEHENSIVE MONITORING

See a Lot More HERE

The EPHUM-I-MAX is a comprehensive monitoring and control system that provides a wide range of information and features for managing the performance of the desiccant dehumidifier. Here’s a breakdown of the information and features it offers:

Monitored Parameters:

  1. Temperature:
  2. Relative Humidity (RH%):
  3. Absolute Humidity:
  4. Dew Point:
  5. Volts and Amps:
  6. Power Usage:
  7. Job kWh and Job Hours:
  8. Hour Counter:

Monitoring and Alert Features:

  1. Job Power and Hour Monitor:
  2. Ice and Heat Warnings:
  3. Filter Cleaning Warning:
  4. Log Page:
  5. High / Low Temperature and Humidity Alarms:
  6. Continuous Fan Operation:
  7. Internal Overheat Warning Notifications:
  8. Hysteresis Variance:
  9. Countdown Timer:
  10. 365-Day Scheduling:
  11. Temperature and Humidity Set Point Control:
  12. Manual Control Option:
dehumidifier download user manual dehumidifiers by Ecor Pro

Dimensions

Additional PArts Available

For smaller ducting consider the EPDF90 (90mm/3.5″)

Positive or Negative Focus Flood Drying

Tent can not be sealed (3-hole drying). More effective to seal the tent using a 4-hole system
Positive Pressure Splitting Dry Airflow

Positive Pressure Splitting Dry Airflow 2

Floor Flood Positive Pressure Outside Tent

Negative Pressure

Simply put the dehumidifier in the room or tent and exhaust the wet air outside of the tent or outside of the room.

How to set up a drying tent
