EPD330LGR Low Grain Refrigerant Dehumidifier with Water Pump

European (R290 refrigerant) or North American 110V/60 Hz  (R410a refrigerant) alternatives.  Floor standing on 4 feet with 2 wheels and drag folding handle. Stackable refrigerant dehumidifier,  rotor moulded plastic casing with electronic controls.  Side air outlet can be ducted to focus dry air;  over 330 Pints / 150 litres maximum extraction at maximum temperatures and humidity.  Power rated at  – Operating range from 4°C/40°F up 38°C/100°F.  Integral pump with  maximum  water height of 11ft / 3.5m.  One fan speed with 1,000 m3/hr / 590 cfm air volume capacity. Sound rated at 60dB. Hose length 40ft / 12m cord length 15ft / 5m

SKU: EPD330LGR Categories: , ,

EU Manual

avfuktare ladda ner bruksanvisning avfuktare av Ecor Pro
jämföra våra produkter avfuktare av Ecor Pro

Focus Flood Drying

Seal the drying tent to neutrally pressure dry or in the tent for neutral pressure drying saving time, money and carbon footprint
Positive Pressure Outside

Neutral Pressure Inside

How to set up a drying tent

CONDENSATE PRODUCED
WATER IS PUMPED AWAY

Ideal for Restoration Industry & Construction Industry

150 Litre / 330 Pint Low Grain Refrigerant CDehumidifier 220V / 50Hz & 110V 60Hz versions

Air Volume 1,000m3/hr or 590 CFM



Integral pump lifting water to 3.5m / 11ft

Free Standing. Can be stacked. Folding drag handle

Will dry 247 and dry up to +38°C/100°F.  Will stop working at +4°C / 40°F. Used in a wide variety of commercial applications where temperatures are likely to be over +25°C / 77°C. Especially designed for flood applications and drying building work, paint or plaster quicker.Very easy to access the internal parts for any service needed. Comes with drainage hose 40ft / 12m long that push fits onto the protected spigot.  Easy to plug / unplug the power cord for easy storage or to replace the power cord if damaged

Rotor Moulded Plastic Construction

Electronic controls are accessible from the front. Measures run time and amps used for easy calculation of energy costs.  EU versions come with 220 commercial water resistant plug.  North American models come with standard domestic plug.Energy efficient with optimum compressor operating times based on an internal microprocessor calculation to optimize performance.One easy connect drain hole with screw tread for secure connection

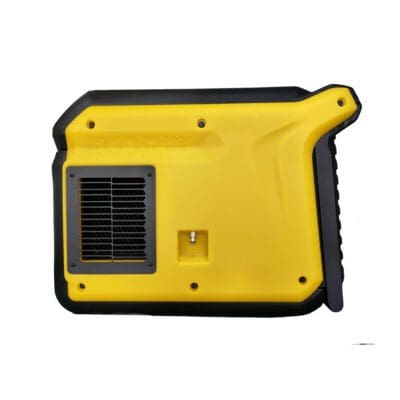

Side Dry Air Out for Focus Drying

Allows focus drying in tented areas with ducting.  Perfect to save energy costs and faster drying times.



Delar associerade

Funktioner förklaras

Extraction – R410a Version North America 110V 60Hz
330 pints/day (95°F RH95%)
205 pints/day (86°F RH80%)
115 pints/day (80 0F RH60%)

Extraction – R290a Version Europe 220V 50Hz
150 L/day (35°C RH95%)
90 L/day (30°C RH80%)
50 L/day (27°C RH60%)

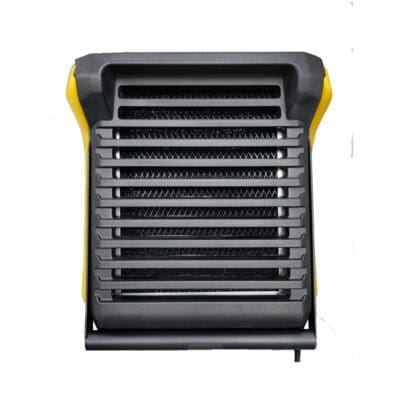

Wire Mesh & Carbon Filter – In tough aluminium extrusion outer filter frame that is lockable in position with small screw driver.  Easy to clean and durable
Easy Repair – Side panels and top cover easily remove to gain full access to the drain tray and water pump and other electrical parts for repair and maintenance
On Four Grey Rubber Feet and Two Wheels for Easy Dragging – Low profile feel that air stacking and ensure stability but will not interfere with dragging the unit over uneven floors or up steps
One Fan Speed – The fan setting fixed for maximum performance.  420 m3/hr / 247 cfm air volume capacity
Power Supply – 220V 50Hz also  version or 110V/60Hz
Auto Reset – If there is an interruption to the power supply, the dehumidifier will resume automatically No humidistat option
Drainage – Pump drained through a standard push fit connector.  On and off in a few seconds.  Recessed so less chance of damage in transport. Water pump can pump to a height of 11ft / 3.5m. Used with 0.25″ / 7mm hose pipe 5m / 25′
Power Cord – Easy to replace kettle lead power cord for easy transportation and changing if the power cord becomes damaged.  European version come with commercial plug.  North American versions come with standard domestic plug

Need to know efficientcy?

Vikt 44.8 kg
Dimensioner 705 × 450 × 530 cm
(L x W x H)-(vikt)

Nett 705 × 450 × 530 mm / 27.7 × 17.5 × 20.9 in.. – (48.8 kg / 107.5 lbs) Gross 380 x 440 x 570mm / 15.0" x 18.0" x 22.5"- (47.8kg / 105.3 lbs)
Teknik

Low Grain Refrigerant / Compressor
Max Extract per Day

35°C RH90% 150 Litres / 330 pints – 27°C RH60% – 50 Litres / 205 pints
Ström / Plugg / Sladdlängd

25' / 5m
Färg / Material

Dark Grey / Yellow Moulded Plastic
Kanalstorlekar

Adaptor provided for inputting adding 150mm / 8" duct
Pool redo

Nej
Humidistat Inuti / Humidistat Alternativ

YES / YES
Bärhandtag / Vattenbehållare / Nätsladdlängd

2 grip points each side / No / 15' / 5m
Fläkthastigheter / Ljud

1 / 60dB
Fungerande temperatur

Plus 4°C/39°F to plus 38°C/100°F
Power Out Restart / Fungerar från DC-AC Coverter

Ja / Nej
Airflow m3/hr - cfm

1000 – 590
Material

Rotational Moulded Polyethylene & Polypropylene mix
Godkännande

CE, ETL, CETL, GS, RoHS
