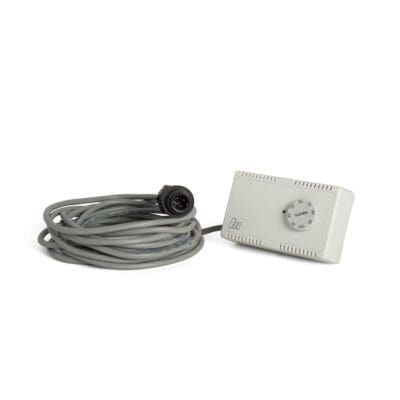

EPHUM110 Humidistat for DH2511, DH3511, EPD150, EPD200

High voltage humidistat for EPD150, EPD200, DH25XX and DH35XX dehumidifiers. Manual control dial. Comes with 5m / 15″ connecting cable and mil standard screw plug connected.

SKU: EPHUM110 Categories: , , , , , , , Tags: ,
dehumidifier download user manual dehumidifiers by Ecor Pro
EPHUM24 dehumidifiers by Ecor Pro

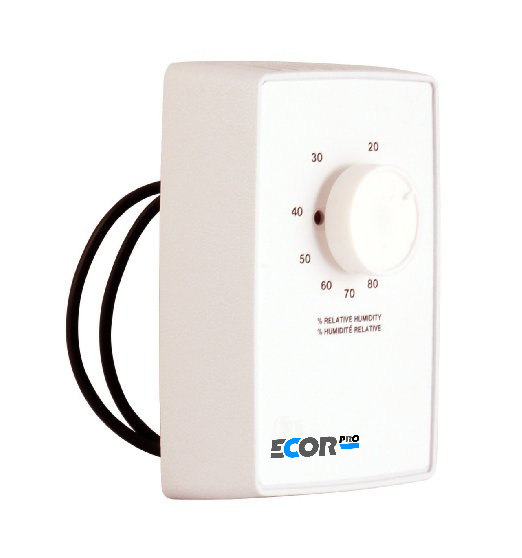

HUMIDISTAT FOR LD800 & DSR
DEHUMIDIFIERS

Installed in Seconds

Easy to operate. Please note there is a 5% tolerance factor built into every dehumidifier. The higher the HIGHER THE HUMIDITY % SETTING THE LESS THE DEHUMIDIFIER WILL DRY and vice-verse. At near 100% the humidistat will effectively turn the humidistat off. At a very low setting the humidistat will effectively turn the dehumidifier on continuously.

The humidity percentage relates to the relative humidity level of the air sometimes referred to a RH%.

All White Plastic Construction

Parts Associated

Features Explained

EPHUM24 – LOW VOLTAGE Used with DSR12, DSR20, LD800, LD800H. Low voltage humidistat that needs connection. No 2-core signal wire provided. Note the DSR models come with a jack plug. This jack plug should be soldered to the signal wire and then plugged into the DSR units.



EPHUM220 – HIGH VOLTAGE Used with EPD200 / DH3500, EPD150 / DH2500, High voltage humidistat with 2m / 6″ cable. Comes fitted with mil standard plug that screws directly into the dehumidifiers in seconds.

EPHUM24DF – LOW VOLTAGE Used with EPD50 / DH1200, EPD30 / DH800, Low voltage humidistat with 2m / 6″ cable. Also comes fitted with a jack plug fitted to plug directly into the dehumidifiers.

Weight 0.2 kg
Dimensions 11.5 × 7.5 × 4.5 cm
(L x W x H)-(weight)

4.5" x 3.0" x 1.8" – 0.4 lbs
Technology

Humidistat
Barcode

EAN 5060224950463
Colour

White
Material

Plastic matt finish
Colour / Material

White/ Plastic
Duct Sizes

Not Applicable
Swimming Pool Ready

No
Humidistat Inside / Humidistat Option

Not Applicable
Carrying Handle / Water Container / Power Cord Length

Not Applicable / Not Applicable
Fan Speeds / Sound

Not Applicable / Not Applicable
Operting Temperature

Minus 20?C to plus 40?C
Power Out Restart / Works From DC-AC Coverter

Not Applicable / Yes
Airflow

Not Applicable
